UPD411A-2, UPD411A - 4096-BIT DYNAMIC RAMS

UPD411A-2 Description

NEe Microcomputers, Inc.NEe Jl.PD411A Jl.PD411A-1 Jl.PD411A-2 DESCR IPTION 4096 BIT DYNAMIC RAMS The ,uPD411A Famify consists of four 4096 words .

UPD411A-2 Features

* Low Standby Power
* 4096 words x 1 bit Organization
* A single low
* capacitance high level clock input with solid ±1 volt margins.
* Inactive Power 0.7 mW (Typ. )
* Power Supply +12, +5, -5V
* Easy System Interface
* TTL Compatible (Except

UPD411A-2 Applications

* where very low cost and large bit storage are important design objectives. The ,uPD411 A Family is designed using dynamic circuitry which reduces the standby power dissipation. Reading information from the memory is non
* destructive. Refreshing is easily II accomplished by performing one read c

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UPD411A-2, UPD411A. Please refer to the document for exact specifications by model.

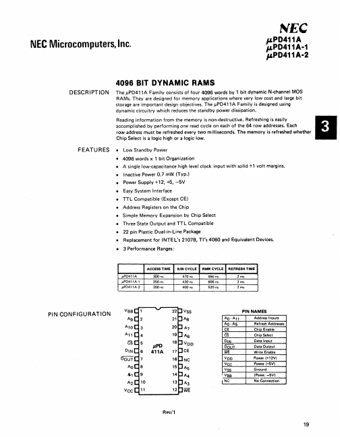

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD411A-2, UPD411A
Manufacturer
NEC
File Size
418.07 KB
Datasheet
UPD411A-NEC.pdf
Description
4096-BIT DYNAMIC RAMS
Note
This datasheet PDF includes multiple part numbers: UPD411A-2, UPD411A.
Please refer to the document for exact specifications by model.
