UPD421-3 Datasheet - NEC

UPD421-3 8K BIT STATIC RAM

UPD421-3 Features

* include a power down mode controlled by the chip select input for an 80% power saving. FEATURES

* 1024x8-bitOrganization

* Very Fast Access Time: 150/200/250/300/450 ns

* Single +5V Power Supply

* Low Power Standby Mode

* N-Channel Silicon Gate Process

UPD421-3 Datasheet (187.16 KB)

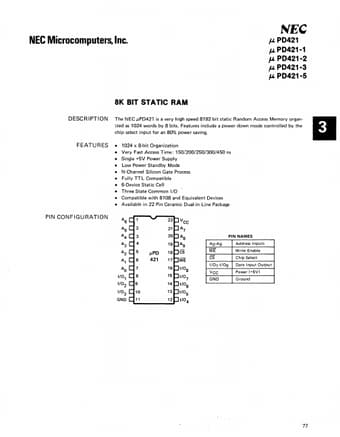

Preview of UPD421-3 PDF
UPD421-3 Datasheet Preview Page 2 UPD421-3 Datasheet Preview Page 3

Datasheet Details

Part number:

UPD421-3

Manufacturer:

NEC

File Size:

187.16 KB

Description:

8k bit static ram.
