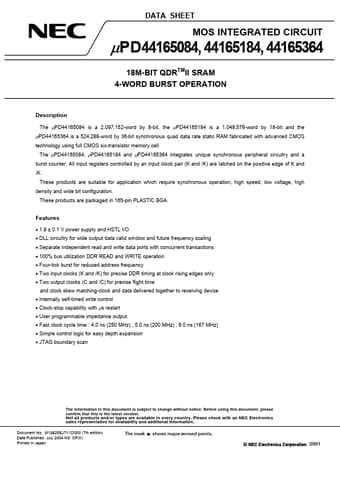

UPD44165184 (UPD44165084/184/364) 18M-BIT QDRII SRAM 4-WORD BURST OPERATION

The µPD44165084 is a 2,097,152-word by 8-bit, the µPD44165184 is a 1,048,576-word by 18-bit and the µPD44165364 is a 524,288-word by 36-bit synchronous quad data rate static RAM fabricated with advanced CMOS technology using full CMOS six-transistor memory cell. The µPD44165084, µPD44165184 and µPD.

UPD44165184 Features

* 1.8 ± 0.1 V power supply and HSTL I/O

* DLL circuitry for wide output data valid window and future frequency scaling

* Separate independent read and write data ports with concurrent transactions

* 100% bus utilization DDR READ and WRITE operation

* Four-tick

UPD44165084_NEC.pdf

UPD44165184 Datasheet Preview — This datasheet PDF includes multiple part numbers: UPD44165184, UPD44165084. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

UPD44165184, UPD44165084

Manufacturer:

NEC

File Size:

392.16 KB

Description:

(upd44165084/184/364) 18m-bit qdrii sram 4-word burst operation.

Note:

This datasheet PDF includes multiple part numbers: UPD44165184, UPD44165084.
Please refer to the document for exact specifications by model.
