UPD6464A - ON-SCREEN CHARACTER DISPLAY CMOS LSI

NEC

The UPD6464A by NEC is a ON-SCREEN CHARACTER DISPLAY CMOS LSI. Below is the official datasheet preview.

📥 Download Datasheet

UPD6464A ON-SCREEN CHARACTER DISPLAY CMOS LSI by NEC - Datasheet Preview — Official preview page of the UPD6464A ON-SCREEN CHARACTER DISPLAY CMOS LSI datasheet (NEC).

Datasheet Details

Part number	UPD6464A
Manufacturer	NEC
File Size	570.62 KB
Description	ON-SCREEN CHARACTER DISPLAY CMOS LSI
Datasheet	UPD6464A_NEC.pdf

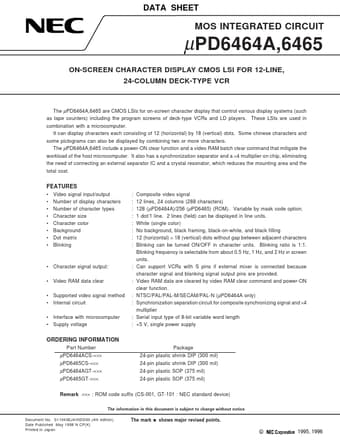

Additional preview pages of the UPD6464A datasheet.

UPD6464A Product details

Features

Video signal input/output Number of display characters Number of character types Character size Character color Background Dot matrix Blinking : : : : : : : : Composite video signal 12 lines, 24 columns (288 characters) 128 (µPD6464A)/256 (µPD6465) (ROM). Variable by mask code option. 1 dot/1 line. 2 lines (field) can be displayed in line units. White (single color) No background, black framing, black-on-white, and b.
