UPD6467 Datasheet - NEC

UPD6467 ON-SCREEN CHARACTER DISPLAY CMOS IC

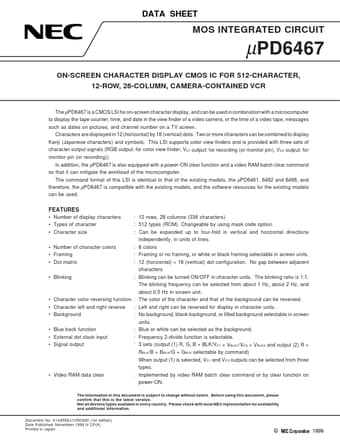

DATA SHEET MOS INTEGRATED CIRCUIT µPD6467 ON-SCREEN CHARACTER DISPLAY CMOS IC FOR 512-CHARACTER, 12-ROW, 28-COLUMN, CAMERA-CONTAINED VCR The µPD6467 is a CMOS LSI for on-screen character display, and can be used in combination with a microcomputer to display the tape counter, time, and date in the view finder of a video camera, or the time of a video tape, messages such as dates on pictures, and channel number on a TV screen. Characters are displayed in 12 (horizontal) by 18 (vertical) dots. .

UPD6467 Features

* Number of display characters

* Types of character

* Character size

* Number of character colors

* Framing

* Dot matrix

* Blinking : 12 rows, 28 columns (336 characters) : 512 types (ROM). Changeable by using mask code option. : Can be expande

UPD6467 Datasheet (609.65 KB)

UPD6467 Datasheet Preview — Preview of UPD6467 PDF

Datasheet Details

Part number:

UPD6467

Manufacturer:

NEC

File Size:

609.65 KB

Description:

On-screen character display cmos ic.
