UPD78CP18A, UPD78CP18 8-BIT SINGLE-CHIP MICROCOMPUTER

UPD78CP18A Description

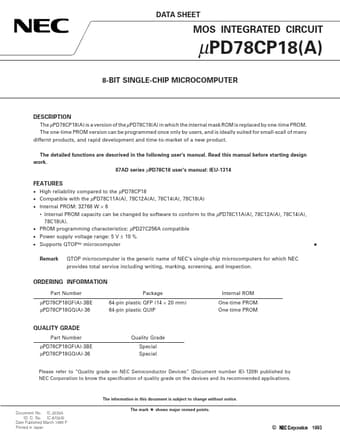

DATA SHEET MOS INTEGRATED CIRCUIT µPD78CP18(A) 8-BIT SINGLE-CHIP MICROCOMPUTER .
The µPD78CP18(A) is a version of the µPD78C18(A) in which the internal mask ROM is replaced by one-time PROM.

UPD78CP18A Features

* High reliability compared to the µPD78CP18
* Compatible with the µPD78C11A(A), 78C12A(A), 78C14(A), 78C18(A)
* Internal PROM: 32768 W × 8
* Internal PROM capacity can be changed by software to conform to the µPD78C11A(A), 78C12A(A), 78C14(A), 78C18(A).
* PRO

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: UPD78CP18A, UPD78CP18. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
UPD78CP18A, UPD78CP18
Manufacturer
NEC
File Size
406.80 KB
Datasheet
UPD78CP18_NEC.pdf
Description
8-BIT SINGLE-CHIP MICROCOMPUTER
Note
This datasheet PDF includes multiple part numbers: UPD78CP18A, UPD78CP18.
Please refer to the document for exact specifications by model.
