UPD78F0034AY

8 Bit Single Chip Microcontroller

UPD78F0034AY Features

* Pin-compatible with mask ROM versions (except VPP pin)

* Flash memory:

* Supply voltage: Note 32 KBNote VDD = 1.8 to 5.5 V

* Internal high-speed RAM: 1,024 bytesNote The flash memory and internal high-speed RAM capacities can be changed with the memory size switchi

UPD78F0034AY General Description

The µPD78F0034A is a member of the µPD780034A Subseries in the 78K/0 Series, and is equivalent to the µPD780034A but with flash memory in place of internal ROM. The µPD78F0034AY is a member of the µPD780034AY Subseries, featuring flash memory in place of the internal ROM of the µPD780034AY. The µPD.

UPD78F0034AY Datasheet (637.51 KB)

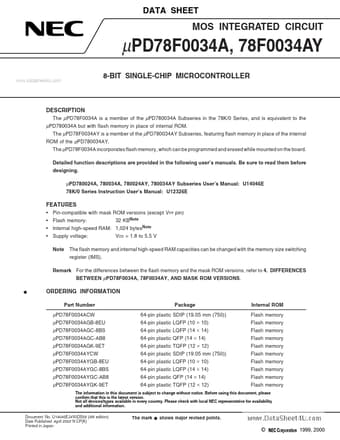

Preview of UPD78F0034AY PDF

Datasheet Details

Part number:

UPD78F0034AY

Manufacturer:

NEC

File Size:

637.51 KB

Description:

8 bit single chip microcontroller.
