UPD8041A - UNIVERSAL PROGRAMMABLE PERIPHERAL INTERFACE - 8-BIT MICROCOMPUTER

Name: UPD8041A
SKU: UPD8041A-1098228

NEC

The UPD8041A by NEC is a UNIVERSAL PROGRAMMABLE PERIPHERAL INTERFACE - 8-BIT MICROCOMPUTER. Below is the official datasheet preview.

Datasheet Details

Part number	UPD8041A
Manufacturer	NEC
File Size	575.07 KB
Description	UNIVERSAL PROGRAMMABLE PERIPHERAL INTERFACE - 8-BIT MICROCOMPUTER
Datasheet	UPD8041A-NEC.pdf

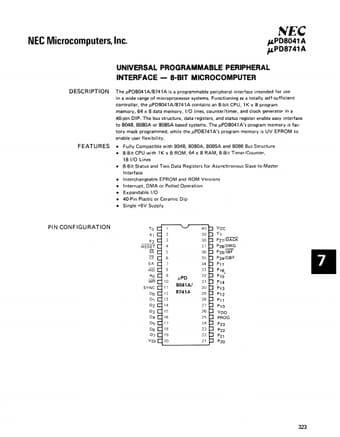

Additional preview pages of the UPD8041A datasheet.

The IlPD8041 A/8741 A is a programmable peripheral interface intended for use in a wide range of microprocessor systems. Functioning as a totally self-sufficient controller, the IlPD8041A/8741A contains an 8-bit CPU, 1K x 8 program memory, 64 x 8 data memory, I/O lines, counter/timer, and clock generator in a 40'pin DIP. The bus structure, data registers, and status register enable easy interface to 8048, 8080A or 8085A based systems. The IlPD8041 A's program memory is factory mask programmed,.
