UPD8041 - UNIVERSAL PROGRAMMABLE PERIPHERAL INTERFACE - 8-BIT MICROCOMPUTER

NEe Microcomputers, Inc.

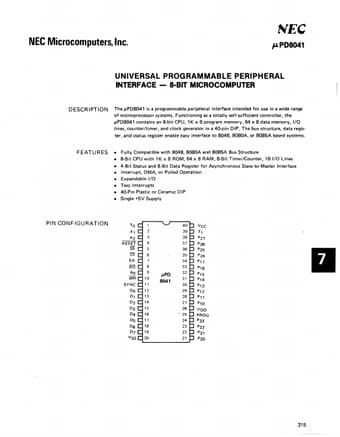

ttt{EC P.PD8041 UNIVERSAL PROGRAMMABLE PERIPHERAL INTERFACE - 8 BIT MICROCOMPUTER DESCR IPT ION The tLPDB041 is a programmable peripheral interface intended for use in a wide range of microprocessor systems.

Functioning as a totally self sufficient controller, the tLPDB041 contains an B-bit CPU, 1K x B program memory, 64 x B data memory, I/O lines, counter/timer, and clock generator in a 40-pin DIP.

The bus structure, data regis- ter, and status register enab
