UPD8085A-2 Single Chip 8-BIT N-CHANNEL MICROPROCESSOR

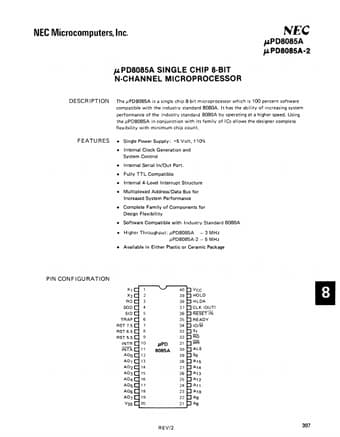

NEe Microcomputers, Inc. fLPD8085A SINGLE CHIP 8 BIT N CHANNEL MICROPROCESSOR NEe JLPD8085A JLPD8085A-2 DESC RIPT ION The j.LPD8085A is a single chip B-bit microprocessor which is 100 percent software compatible with the industry standard 8080A_ It has the ability of increasing system performance of the industry standard 8080A by operating at a higher speed. Using the j.LPD80B5A in conjunction with its family of ICs allows the designer complete flexibility with minimum chip count. FE.

UPD8085A-2 Features

* Single Power Supply: +5Volt,±10%

* Internal Clock Generation and System Control

* Internal Serial In/Out Port.

* Fully TTL Compatible

* Internal 4-Level Interrupt Structure

* Multiplexed Address/Data Bus for Increased System Performance

* Co

UPD8085A-2 Datasheet (716.83 KB)

UPD8085A-2 Datasheet Preview — Preview of UPD8085A-2 PDF

Datasheet Details

Part number:

UPD8085A-2

Manufacturer:

NEC

File Size:

716.83 KB

Description:

Single chip 8-bit n-channel microprocessor.
