SY-A6A70

Frequency Selectable Differential Sine Wave

SY-A6A70 Features

* Wide frequency range - 250MHz to 1.7GHz

* User specified tolerance from ±20ppm

* Will withstand SMD reflow temperatures of 183°C for 4 minutes maximum

* High shock resistance, to 1000g

* Low Jitter Wavecrest jitter characterization available

* Low Ph

SY-A6A70 General Description

The SY-A6A70 Series of quartz crystal oscillators provides a Frequency Selectable Differential Sine Wave signal. The oscillator frequency is set by the voltage applied to the frequency select pin. The two selectable frequencies can be any discrete frequency selected within the range listed below. Th.

SY-A6A70 Datasheet (54.40 KB)

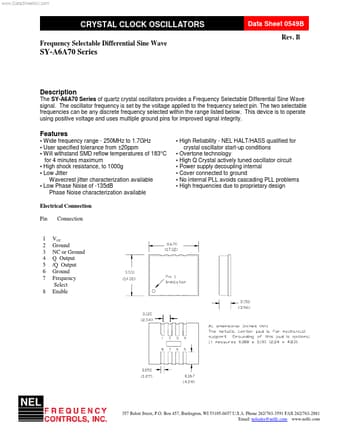

Preview of SY-A6A70 PDF

Datasheet Details

Part number:

SY-A6A70

Manufacturer:

NEL

File Size:

54.40 KB

Description:

Frequency selectable differential sine wave.
