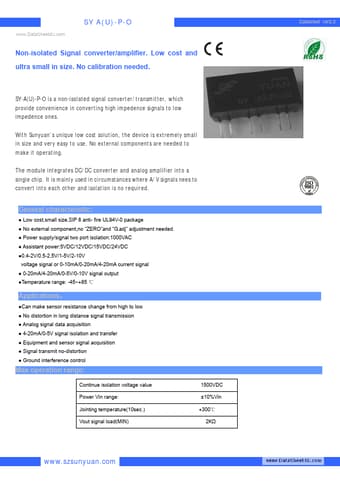

SY-A4-P3-O4 Datasheet Preview Page 2 SY-A4-P3-O4 Datasheet Preview Page 3

Datasheet Details

Part number:

SY-A4-P3-O4, SY-U3-P3-O1

Manufacturer:

YUAN

File Size:

317.99 KB

Description:

Non-isolated signal converter/amplifier.

Note:

This datasheet PDF includes multiple part numbers: SY-A4-P3-O4, SY-U3-P3-O1.
Please refer to the document for exact specifications by model.

SY-A4-P3-O4, SY-U3-P3-O1, Non-isolated Signal converter/amplifier

PIN 1~8 is from left to right.

123 power power omitted PW+ PW- 4 Signal input Sin+ 5 Signal input GND 6 Signal output GND 7 Signal output Io+ 8 Signal Power VD Note: when signal and its power supply is not isolated, and supply>12VDC, the supply can link to PIN8 directly (refer to wiring exam

www.DataSheet4U.com SY A(U)-P-O Non-isolated Signal converter/amplifier.

Low cost and ultra small in size.

No calibration needed.

SY-A(U)-P-O is a non-isolated signal converter/transmitter, which provide convenience in converting high impedence signals to low impedence ones.

With Sunyuan’s unique low cost solution, the device is extremely small in size and very easy to use.

No external components are needed to make it operating.

The module integrates DC/DC converter and analog amplifier into
