LTM450AW, LTM455AW - Ceramic Filter

Datasheet Details

Part number: LTM450AW, LTM455AW
Manufacturer: NEWXTAL
File Size: 89.22 KB

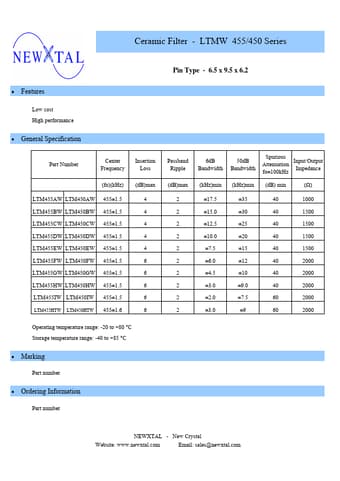

Datasheet: LTM455AW-NEWXTAL.pdf
Description: Ceramic Filter
Note: This datasheet PDF includes multiple part numbers: LTM450AW, LTM455AW.
Please refer to the document for exact specifications by model.

s Low cost High performance.
General Specification Part Number Center Insertion Frequency Loss (fo)(kHz) LTM455AW LTM450AW 455±1.5 LTM455BW LTM450BW 455±1.5 LTM455CW LTM450CW 455±1.5 LTM455DW LTM450DW 455±1.5 LTM455EW LTM450EW 455±1.5 LTM455FW LTM450FW 455±1.5 LTM455GW LTM450GW 455±1.5 LTM455HW LTM450HW 455±1.5 LTM455IW LTM450IW 455±1.5 LTM455HTW LTM450HTW 455±1.6 (dB)max 4 4 4 4 4 6 6 6 6 6 Passband Ripple (dB)max 6dB Bandwidth 50dB Bandwidth Spurious Attenuation fo±100kHz In.
