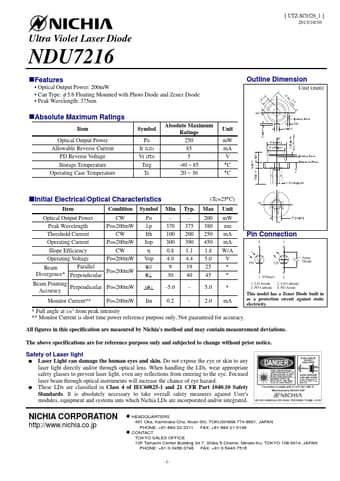

NDU7216 - Ultra Violet Laser Diode

NICHIA

Datasheet Details

r>.
Optical Output Power: 200mW.
Can Type: 5.6 Floating Mounted with Photo Diode and Zener Diode.
Peak Wavelength: 375nm .
Absolute Maximum Ratings  Item Symbol Absolute Maximum Ratings Unit Optical Output Power Po 250 mW Allowable Reverse Current Ir (LD) 85 mA PD Reverse Voltage Vr (PD) 5 V Storage Temperature Tstg -40 ~ 85 C Operating Case Temperature Tc 20 ~ 30 C Outline Dimension Unit (mm) (Φ 1.6) Φ + 5.6 0 - 0.03 (90°) Emit.
