NDUL03N150C Datasheet - ON Semiconductor

NDUL03N150C, N-Channel Power MOSFET

Ordering number : ENA2218 NDUL03N150C N-Channel Power MOSFET 1500V, 2.5A, 10.5Ω, TO-3PF-3L http://onsemi.com .

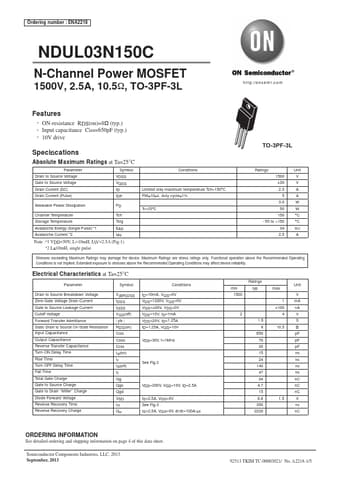

datasheet Preview Page 1 from Datasheet4u.com

NDUL03N150C-ONSemiconductor.pdf

Preview of NDUL03N150C PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number:

NDUL03N150C

Manufacturer:

ON Semiconductor ↗

File Size:

180.34 KB

Description:

N-Channel Power MOSFET

Features

* ON-resistance RDS(on)=8Ω (typ. )
* Input capacitance Ciss=650pF (typ. )
* 10V drive Specifications Absolute Maximum Ratings at Ta=25°C Parameter Symbol Drain to Source Voltage Gate to Source Voltage Drain Current (DC) Drain Current (Pulse) VDSS VGSS ID IDP Allowable Po

Applications

* and actual performance may vary over time. All operating parameters, including “Typicals” must be validated for each customer application by customer’s technical experts. SCILLC does not convey any license under its patent rights nor the rights of others. SCILLC products are not designed, intended,
