NF2E757GRT BLUISH-GREEN LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer () Silicone Resin(with diffuser) + Ag-plated Copper Alloy 0.018g(TYP) * 。 Dimensions do not include mold flash. * a>b、a。 The side with the larger distance is the cathode. Example: a>b, .

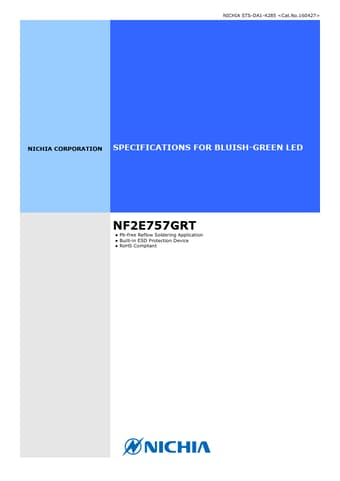

NICHIA STS-DA1-4285 NICHIA CORPORATION SPECIFICATIONS FOR BLUISH-GREEN LED NF2E757GRT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-4285 (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 400 Allowable Reverse Current IR 85 Power Dissipation PD 1.46 Operating Temperature Topr -40~100 Storage Tempe.
