NF2000H-WP Datasheet - Soshin

NF2000H-WP DC Line 48VDC

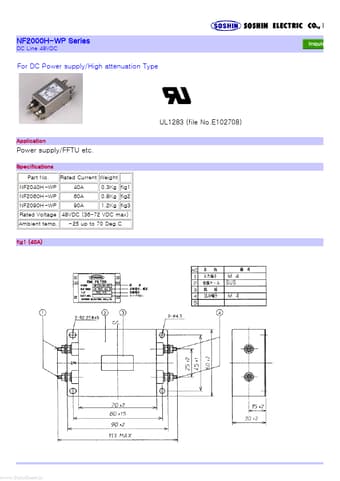

NF2000H-WP Series DC Line 48VDC For DC Power supply/High attenuation Type UL1283 (file No.E102708) Application Power supply/FFTU etc. Specifications Part No. NF2040H -WP NF2060H -WP NF2090H -WP Ambient temp. fig1 (40A) Rated Current Weight 40A 60A 90A 0.3Kg fig1 0.8Kg fig2 1.2Kg fig3 Rated Voltage 48VDC (36-72 VDC max) -25 up to 70 Deg.C www.DataSheet.in fig2 (60A) fig3 (90A) www.DataSheet.in Circuit Diagram www.DataSheet.in .

NF2000H-WP Datasheet (131.12 KB)

Preview of NF2000H-WP PDF
NF2000H-WP Datasheet Preview Page 2 NF2000H-WP Datasheet Preview Page 3

Datasheet Details

Part number:

NF2000H-WP

Manufacturer:

Soshin

File Size:

131.12 KB

Description:

Dc line 48vdc.
