NF2W757GRT LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.018g(TYP) * 。 Dimensions do not include mold flash. * a>b、a。 The side with the larger distance is the cathode.

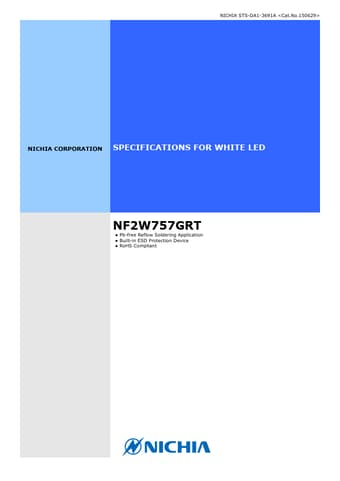

NICHIA STS-DA1-3691A NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NF2W757GRT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 400 Allowable Reverse Current IR 85 Power Dissipation PD 1.42 Operating Temperature Topr -40~100 Storage Temperature Tstg -40~100 Junction Temperature T.
