NFSW123GT WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated 0.012g(TYP) K A Protection Device 4 SOLDERING NICHIA STS-DA1-6474C * Recommended Reflow Soldering Condition(Lead-fre.

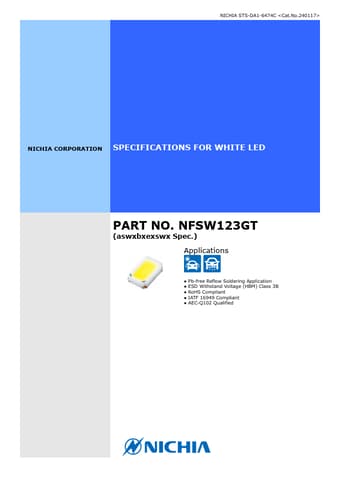

NICHIA STS-DA1-6474C NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED PART NO. NFSW123GT (aswxbxexswx Spec.) Applications Pb-free Reflow Soldering Application ESD Withstand Voltage (HBM) Class 3B RoHS Compliant IATF 16949 Compliant AEC-Q102 Qualified SPECIFICATIONS NICHIA STS-DA1-6474C (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 450 Pulse Forward Current IFP 900 ESD Withstand Voltage.
