NFSW157FT Datasheet (NICHIA)

NFSW157FT - WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.0074g(TYP) * 。 Dimensions do not include mold flash.

K A Protection Device 4 SOLDERING NICHIA STS-DA1-3830

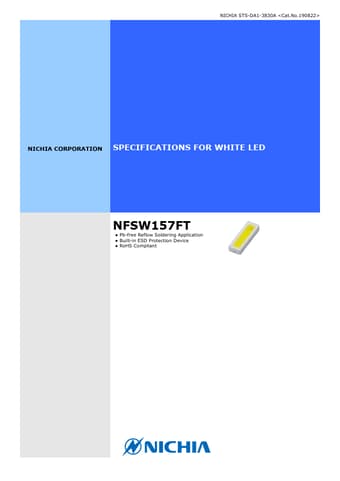

NICHIA STS-DA1-3830A NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NFSW157FT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-3830A (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 400 Allowable Reverse Current IR 85 Power Dissipation PD 680 Operating Temperature Topr -40~100 Storage Temperature
