NFSW157HT Datasheet (NICHIA)

NFSW157HT - WHITE LED

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Heat-Resistant Polymer （+） Silicone Resin (with diffuser and phosphor) + Ag-plated Copper Alloy 0.0078g(TYP) * 。 Dimensions do not include mold flash or metal burr.

Protection Device 4 SOLDERING NICHIA STS-

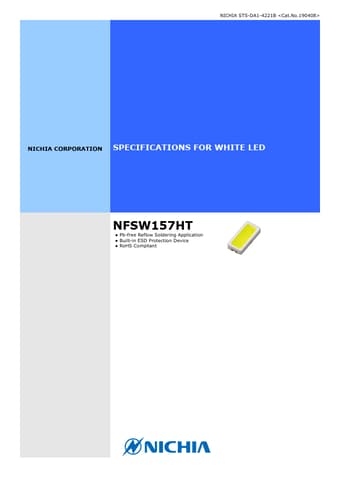

NICHIA STS-DA1-4221B NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NFSW157HT Pb-free Reflow Soldering Application Built-in ESD Protection Device RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-4221B (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 200 Pulse Forward Current IFP 400 Allowable Reverse Current IR 85 Power Dissipation PD 680 Operating Temperature Topr -40~100 Storage Temperature
