NJSW123GT - WHITE LED

Datasheet Summary

Description

Package Materials Encapsulating Resin Materials Electrodes Materials Weight Ceramics （+） Silicone Resin (with diffuser and phosphor) Au-plated 0.012g(TYP) K A Protection Device 4 SOLDERING NICHIA STS-DA1-6478C Recommended Reflow Soldering Condition(Lead-fre

NICHIA

📥 Download Datasheet

Datasheet Details

Part number	NJSW123GT
Manufacturer	NICHIA
File Size	379.15 KB
Description	WHITE LED
Datasheet	NJSW123GT Datasheet
Additional preview pages of the NJSW123GT datasheet.

📁 Similar Datasheet

NJSW107T - LED (NICHIA CORPORATION)
NJSW172T - WHITE LED (NICHIA CORPORATION)
NJSW036AT - LED (NICHIA CORPORATION)
NJSW036LT - LED (NICHIA CORPORATION)
NJSW072T - LED (NICHIA CORPORATION)
NJS6930A - X-band Diode Limiter (Nisshinbo)
NJS8496 - C-band PLL LNB (Nisshinbo)
NJS8497 - C-band PLL LNB (Nisshinbo)
NJS8498 - C-band PLL LNB (Nisshinbo)
NJSA072T - TYPE AMBER LED (NICHIA CORPORATION)

Other Datasheets by NICHIA

NJSW170CT - WHITE LED
NJSW170FT - WHITE LED
NJSW170GT - WHITE LED
NJSW172AT - WHITE LED
NJSW172CT - WHITE LED
NJSW572BT - WHITE LED
NJSA172AT - LED
NJSA172AT-V1 - AMBER LED

Full PDF Text Transcription

Click to expand full text

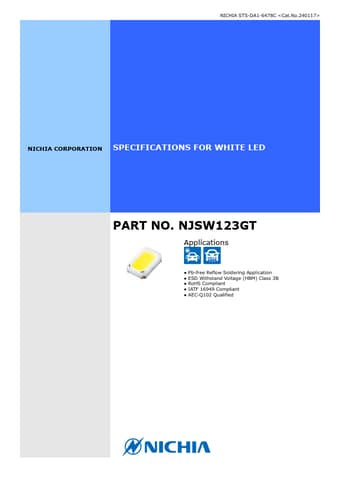

NICHIA STS-DA1-6478C NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED PART NO. NJSW123GT Applications ● Pb-free Reflow Soldering Application ● ESD Withstand Voltage (HBM) Class 3B ● RoHS Compliant ● IATF 16949 Compliant ● AEC-Q102 Qualified SPECIFICATIONS NICHIA STS-DA1-6478C (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 800 Pulse Forward Current IFP 1500 ESD Withstand Voltage (HBM) VESD 8 Allowable Reverse Current IR 85 Power Dissipation PD 2.9 Operating Temperature Topr -40~135 Storage Temperature Tstg -40~135 Junction Temperature TJ 150 * Absolute Maximum Ratings at TJ=25°C. * HBM ESD Component Classification Level of the LEDs: Class 3B For more details, see ANSI/ESDA/JEDEC JS-001.
