NSPWR70CSS Datasheet - NICHIA

NSPWR70CSS - WHITE LED

(+) Epoxy Resin (partly using diffuser and phosphor) + Ag-plated Copper Alloy 0.26g(TYP) * 。 LED。、 4 K 3 A 、。 The tie bar cut-end surface exhibits exposed copper alloy base metal.

Care must be taken to handle the LEDs, as it may contain sharp parts such as lead, and can cause injury.

1

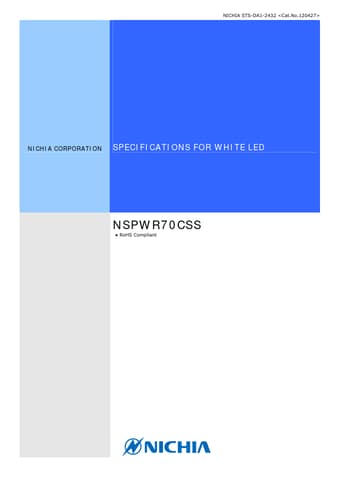

NICHIA STS-DA1-2432 NICHIA CORPORATION SPECIFICATIONS FOR WHITE LED NSPWR70CSS RoHS Compliant SPECIFICATIONS NICHIA STS-DA1-2432 (1) Absolute Maximum Ratings Item Symbol Absolute Maximum Rating Forward Current IF 40 Pulse Forward Current IFP 120 Reverse Voltage VR 5 Power Dissipation PD 152 Operating Temperature Topr -30~85 Storage Temperature Tstg -40~100 Junction Temperature TJ 100 Absolute Maximum Ratings at TA=25°C.

NSPWR70CSS-NICHIA.pdf

Preview of NSPWR70CSS PDF
NSPWR70CSS Datasheet Preview Page 2 NSPWR70CSS Datasheet Preview Page 3

Datasheet Details

Part number:

NSPWR70CSS

Manufacturer:

NICHIA

File Size:

271.69 KB

Description:

White led.
