P1525ETFB N-Channel MOSFET

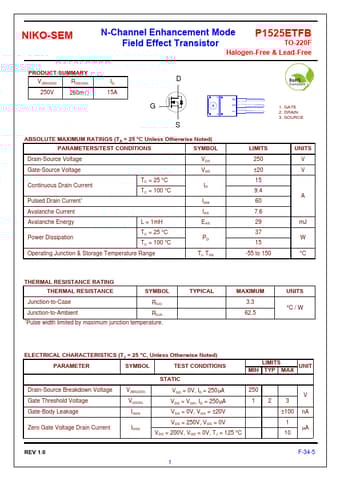

NIKO-SEM N-Channel Enhancement Mode P1525ETFB Field Effect Transistor TO-220F Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 250V 260mΩ ID 15A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 TC = 25 °C TC = 100 °C Avalanche Current Avalanche Energy L = 1mH Power Dissipation TC = 25 °C TC = 100 °C Operating Junction & Stor.

P1525ETFB Datasheet (151.68 KB)
