P3710BTF, P3710BTF-NIKO Datasheet - NIKO-SEM

P3710BTF N-Channel Transistor

NIKO-SEM N-Channel Enhancement Mode P3710BTF Field Effect Transistor TO-220F Halogen-Free & Lead-Free PRODUCT SUMMARY V(BR)DSS RDS(ON) 100V 37mΩ ID 19A D G S ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL Drain-Source Voltage Gate-Source Voltage Continuous Drain Current Pulsed Drain Current1 Avalanche Current Avalanche Energy2 Power Dissipation Junction & Storage Temperature Range TC = 25 °C TC = 100 °C TC = 25 °C TC = 100 °C VDS.

P3710BTF-NIKO-SEM.pdf

This datasheet PDF includes multiple part numbers: P3710BTF, P3710BTF-NIKO. Please refer to the document for exact specifications by model.

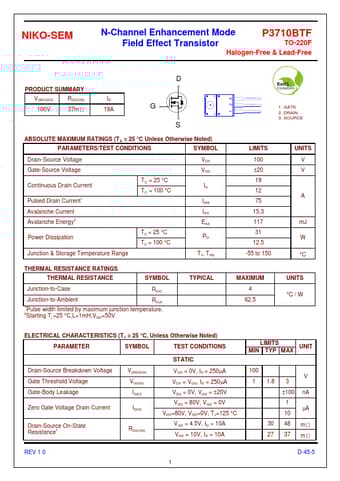

P3710BTF Datasheet Preview Page 2 P3710BTF Datasheet Preview Page 3

Datasheet Details

Part number:

P3710BTF, P3710BTF-NIKO

Manufacturer:

NIKO-SEM

File Size:

305.20 KB

Description:

N-channel transistor.

Note:

This datasheet PDF includes multiple part numbers: P3710BTF, P3710BTF-NIKO.
Please refer to the document for exact specifications by model.
