P3710BV N-Channel MOSFET

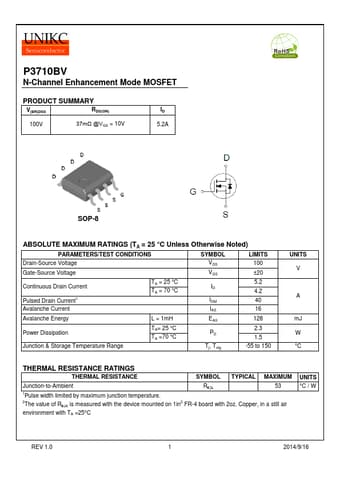

P3710BV N-Channel Enhancement Mode MOSFET PRODUCT SUMMARY V(BR)DSS RDS(ON) 100V 37mΩ @VGS = 10V ID 5.2A SOP-8 ABSOLUTE MAXIMUM RATINGS (TA = 25 °C Unless Otherwise Noted) PARAMETERS/TEST CONDITIONS SYMBOL LIMITS Drain-Source Voltage VDS 100 Gate-Source Voltage VGS ±20 Continuous Drain Current Pulsed Drain Current1 TA = 25 °C TA = 70 °C ID IDM 5.2 4.2 40 Avalanche Current IAS 16 Avalanche Energy L = 1mH EAS 128 Power Dissipation TA= 25 °C TA =70 °C PD 2.3 1.5 Junction .
