NJM2753 - 3-Input / 1-Output Stereo Audio Selector

Description

The NJM2753 is 3-Input / 1-Output Stereo Audio Selector.

amplifiers.

Features

  • lower output noise, lower distortion and higher channel separation than the general Multiplexers or Analogue Switches. The NJM2753 contains compatibility with NJM2752(2in-1out SW),NJM2755(4in-1out SW). s.

📥 Download Datasheet

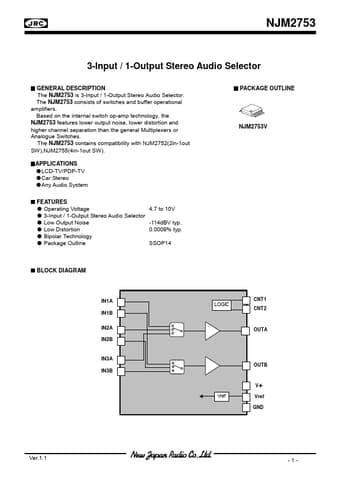

Datasheet preview – NJM2753

📁 Similar Datasheet

  • NJM2750 - 4 INPUT / 1 OUTPUT STEREO AUDIO SELECTOR (ETC)
  • NJM2700 - SRS WOW AUDIO PROCESSOR (New Japan Radio)
  • NJM2701 - 3D SURROUND AUDIO PROCESSOR (New Japan Radio)
  • NJM2702 - 3D SURROUND AUDIO PROCESSOR (New Japan Radio)
  • NJM2703 - 3D SURROUND AUDIO PROCESSOR (New Japan Radio)
  • NJM2704 - 3D SURROUND AUDIO PROCESSOR (New Japan Radio)
  • NJM2705 - Surround Audio Processor (New Japan Radio)
  • NJM2706 - 3D Surround Audio Processor (New Japan Radio)
  • NJM2707 - Sound Enhancement Audio Processor (New Japan Radio)
  • NJM2708 - Sound Enhancement Audio Processor (New Japan Radio)
Other Datasheets by NJR Corporation
  • NJM2752 - 2-Input / 1-Output Stereo Audio Selector
  • NJM2754 - 4in-1out Audio Selector
  • NJM2755 - 4-Input / 1-Output Stereo Audio Selector
  • NJM2783 - Monaural Microphone Amplifier
  • NJM2392 - PWM DC/DC Converter IC
  • NJM2504 - Video Differential Output Driver
  • NJM2505 - Isolation Amplifier
  • NJM2507 - Video Differential Input Receiver

Full PDF Text Transcription

Click to expand full text
NJM2753 3-Input / 1-Output Stereo Audio Selector s GENERAL DESCRIPTION The NJM2753 is 3-Input / 1-Output Stereo Audio Selector. The NJM2753 consists of switches and buffer operational amplifiers. Based on the internal switch op-amp technology, the NJM2753 features lower output noise, lower distortion and higher channel separation than the general Multiplexers or Analogue Switches. The NJM2753 contains compatibility with NJM2752(2in-1out SW),NJM2755(4in-1out SW). sAPPLICATIONS q LCD-TV/PDP-TV qCar Stereo qAny Audio System s FEATURES q Operating Voltage 4.7 to 10V q 3-Input / 1-Output Stereo Audio Selector q Low Output Noise -114dBV typ. q Low Distortion 0.0009% typ.
