17PU-H010V - hybrid motors

NMB

17PU-H010V hybrid motors by NMB - Datasheet Preview

Datasheet Details

Part number	17PU-H010V
Manufacturer	NMB
File Size	242.72 KB
Description	hybrid motors
Datasheet	17PU-H010V Datasheet

📁 Similar Datasheet

Part Number	Description	Manufacturer
17P10	P-Channel MOSFET	Fairchild Semiconductor
17P10	P-CHANNEL POWER MOSFET	UTC
17P10-HC	P-CHANNEL POWER MOSFET	UTC
17P12	P-CHANNEL MOSFET	UTC
17PM-H005-P2VA	Mini Angle	Minebea

Other Datasheets by NMB

Part Number	Description
17PU-H013	Motors
17PU-H014	Motors
17PU-H018V	Motors
17PU-H018VT	hybrid motors
17PU-H008V	Motors

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

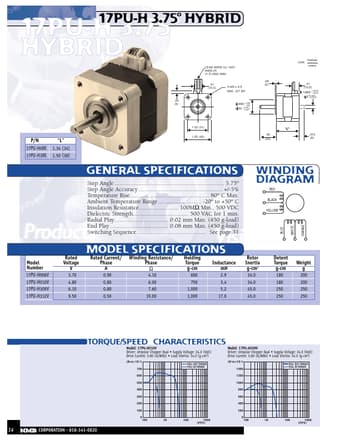

7 3 7517PU-H17P3U-.H735.75ºº HYBRID HYBRID LEAD WIRE UL 1007 AWG 24 11.8 (300) MIN .61 (15.5) 4-M3 x 0.5 MIN .157 DP .24 (6) .866 +.000 - .002 ( 22 +- 00..0050) .08 (2) Unit: inches (mm) .41 (10.5) .1969 +.0000 - .0005 ( 5+- 00..001030) P/N 17PU-H0XX 17PU-H3XX “L” 1.34 (34) 1.50 (38) 1.22 (31) 1.65 (42) GENERAL SPECIFICATIONS Step Angle ..................................................................... 3.75º Step Angle Accuracy ..................................................... +/-5% Temperature Rise.................................................. 80º C Max. Ambient Temperature Range ........................... -20º to +50º C Insulation Resistance......................... 100MΩ Min., 500 VDC Dielectric Strength................................... 500 VAC for 1 min.
