23KM-K155U Standard Hybrid Step Motors

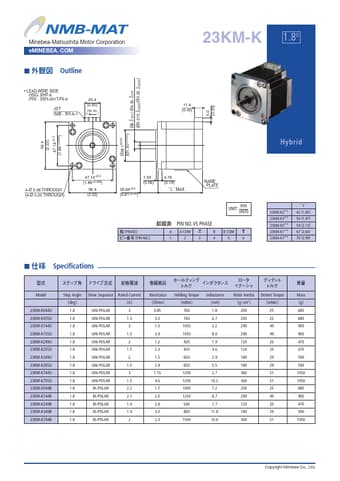

Minebea-Matsushita Motor Corporation eMINEBEA. COM Outline LEAD WIRE SIDE -HSG: XHP-6 -PIN : SXH-001T-P0.6 JST S6B - XH-A-1 20.4 (0.80) PIN NO. 61 Ø8 0 0.013 / Ø6.35 0 0.013 (Ø0.315 0 0.0005 /Ø0.25 00.0005) 23KM-K 1.80 11.4 (0.45) 5.0 (0.20) Hybrid Ø38.1±+0.05 (Ø1.50±0.002) 56.4 (2.22) 47.14 ±0.2 (1.86 ±0.008 ) 4-Ø 5.08 THROUGH (4-Ø 0.20 THROUGH) 47.14 ±0.2 (1.86 ±0.008) 56.4 (2.22) 20.64±0.5 (0.81 ±0.02) 1.59 (0.06) PHASE PIN N.

23KM-K055U-NMB.pdf

23KM-K155U Datasheet Preview — This datasheet PDF includes multiple part numbers: 23KM-K155U, 23KM-K055U. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

23KM-K155U, 23KM-K055U

Manufacturer:

NMB

File Size:

86.79 KB

Description:

Standard hybrid step motors.

Note:

This datasheet PDF includes multiple part numbers: 23KM-K155U, 23KM-K055U.
Please refer to the document for exact specifications by model.
