NSi8130 - High Reliability Triple-Channel Digital Isolators

Name: NSi8130
SKU: NSi8130-1594638

NOVOSENSE

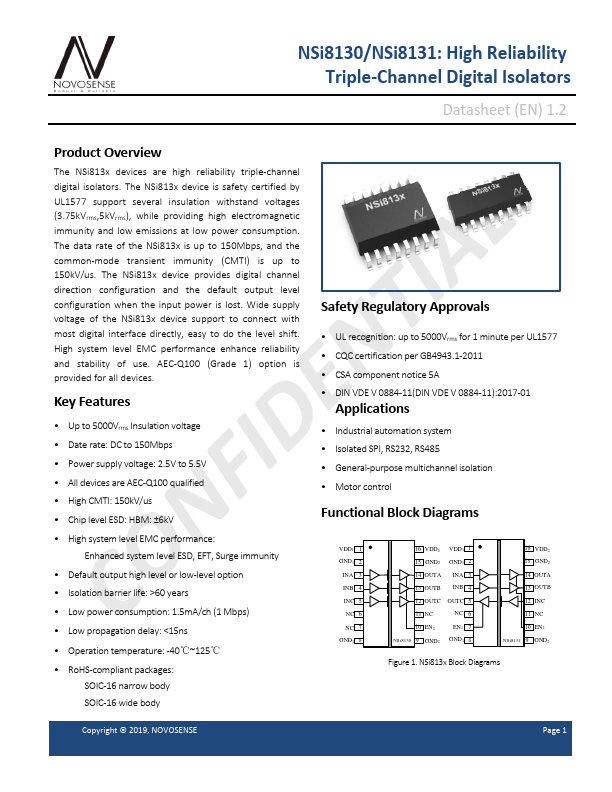

The NSi8130 by NOVOSENSE is a High Reliability Triple-Channel Digital Isolators. Below is the official datasheet preview.

Datasheet Details

Part number	NSi8130
Manufacturer	NOVOSENSE
File Size	1.50 MB
Description	High Reliability Triple-Channel Digital Isolators
Datasheet	NSi8130-NOVOSENSE.pdf

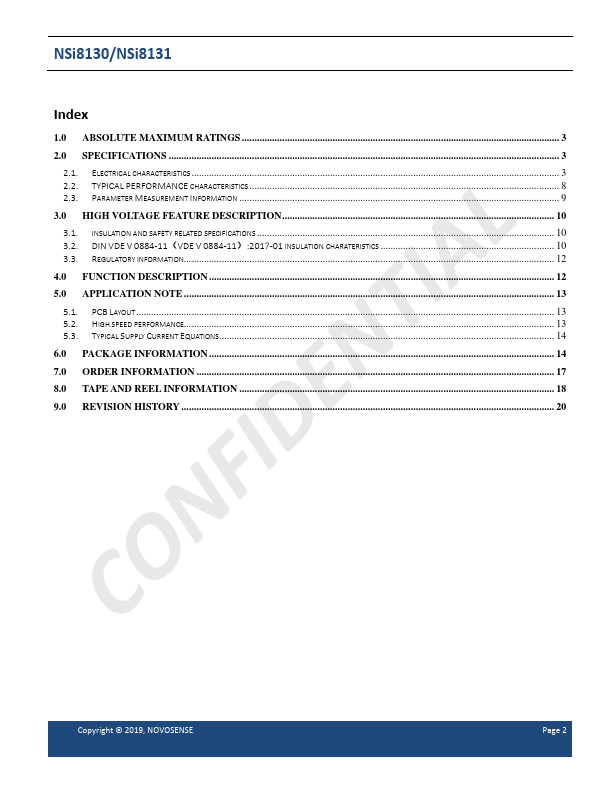

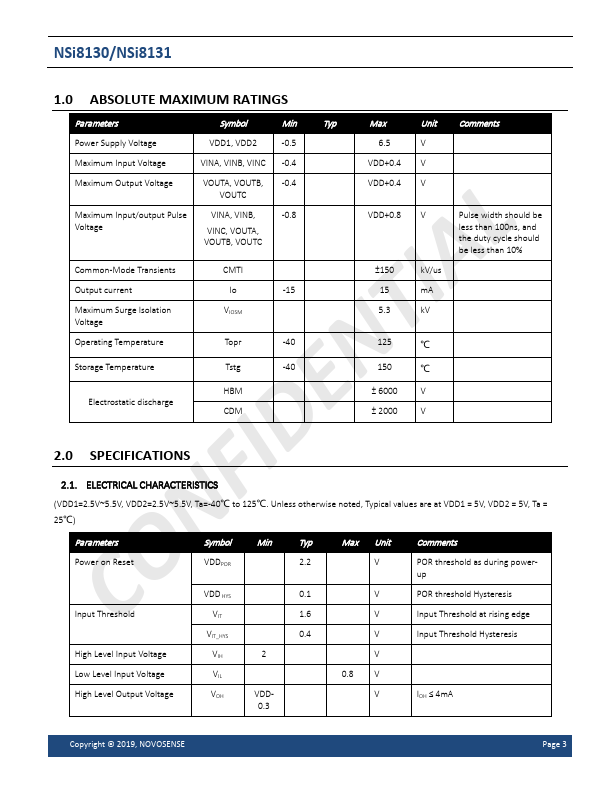

Additional preview pages of the NSi8130 datasheet.

10 3.1.

E.
Up to 5000Vrms Insulation voltage.
Date rate: DC to 150Mbps ID.
Power supply voltage: 2.5V to 5.5V.
All devices are AEC-Q100 qualified.
High CMTI: 150kV/us F.
Chip level ESD: HBM: ±6kV.
High system level EMC performance: N Enhanced system level ESD, EFT, Surge immunity.
Default output high level or low-level option O.
Isolation barrier life: >60 years C.
Low power consumption: 1.5mA/ch (1 Mbps) Safety Regulatory Approvals.
UL recognition.
