NSI45020AT1G - Constant Current Regulator & LED Driver

Datasheet Summary

Features

  • Robust Power Package: 460 mW.
  • Wide Operating Voltage Range.
  • Immediate Turn-On.
  • Voltage Surge Suppressing - Protecting LEDs.
  • UL94-V0 Certified.
  • SBT (Self-Biased Transistor) Technology.
  • Negative Temperature Coefficient.
  • NSV Prefix for Automotive and Other.

📥 Download Datasheet

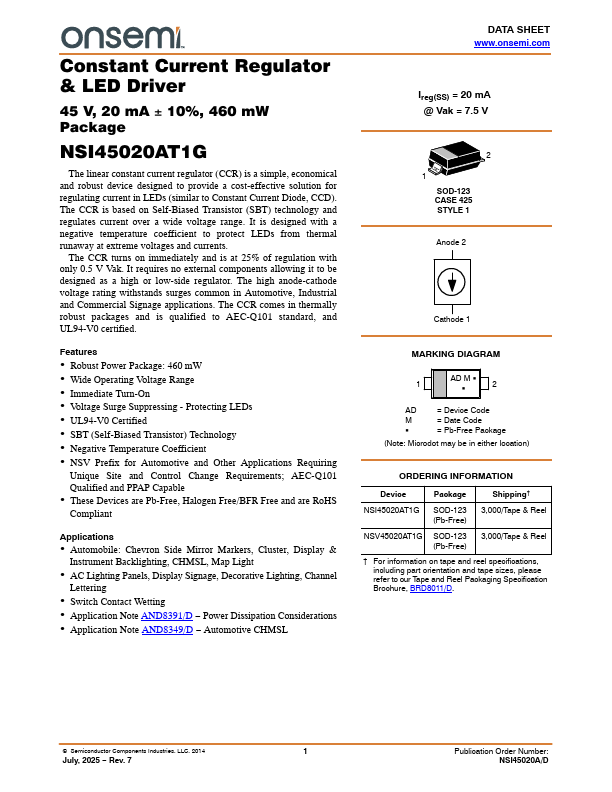

Datasheet preview – NSI45020AT1G

Datasheet Details

Part number NSI45020AT1G
Manufacturer ON Semiconductor
File Size 299.56 KB
Description Constant Current Regulator & LED Driver
Datasheet download datasheet NSI45020AT1G Datasheet

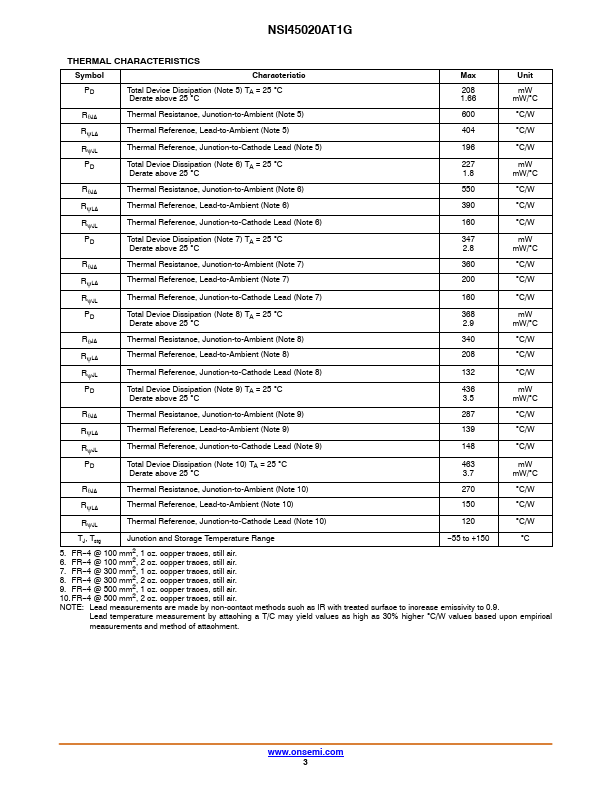

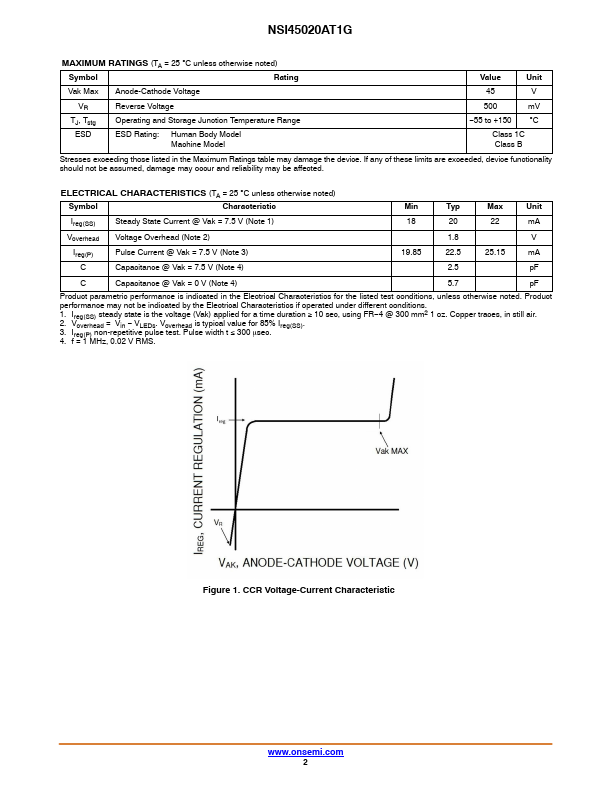

Additional preview pages of the NSI45020AT1G datasheet.

📁 Similar Datasheet

  • NSI1000 - 1024 x 32 Resolution CMOS Image Sensor (Newsight Imaging)
  • NSI1042 - Isolated CAN Transceiver (NOVOSENSE)
  • NSI1042-Q1 - Isolated CAN Transceiver (NOVOSENSE)
  • NSI1042C - Isolated CAN Transceiver (NOVOSENSE)
  • NSi1050 - Isolated CAN Transceiver (NOVOSENSE)
  • NSI1052 - Isolated CAN Transceiver (NOVOSENSE)
  • NSi1200 - High Reliability Reinforced Isolated Amplifier (NOVOSENSE)
  • NSi1300 - Isolated Amplifier (NOVOSENSE)
  • NSi1300-Q1 - High Reliability Reinforced Isolated Amplifier (NOVOSENSE)
  • NSi1306 - Isolated Sigma-Delta Modulator (NOVOSENSE)
Other Datasheets by ON Semiconductor

Full PDF Text Transcription

Click to expand full text
Constant Current Regulator & LED Driver 45 V, 20 mA + 10%, 460 mW Package NSI45020AT1G The linear constant current regulator (CCR) is a simple, economical and robust device designed to provide a cost-effective solution for regulating current in LEDs (similar to Constant Current Diode, CCD). The CCR is based on Self-Biased Transistor (SBT) technology and regulates current over a wide voltage range. It is designed with a negative temperature coefficient to protect LEDs from thermal runaway at extreme voltages and currents. The CCR turns on immediately and is at 25% of regulation with only 0.5 V Vak. It requires no external components allowing it to be designed as a high or low-side regulator.
