1N5624 Glass Passivated Junction Rectifier

1N5624 Description

1N5624 thru 1N5627 Glass Passivated Junction Rectifier 3 Amp .

1N5624 Features

* D Glass Passivated Cavity
* Free Junction D High Temperature Metallurgically Bonded Construction D Hermetically Sealed Package D Typical IR Less Than 0.1μA D 3 Amp Operation at TA = +70°C with No Thermal Runaway D High Temperature Soldering Guaranteed Maximum Ratings and Electrical Character

📥 Download Datasheet

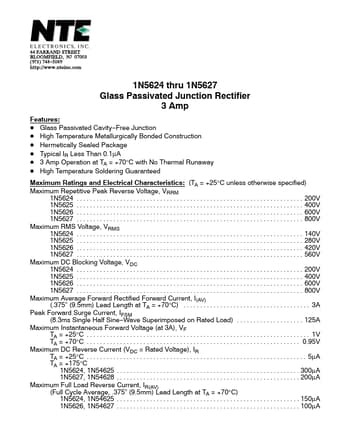

Preview of 1N5624 PDF
datasheet Preview Page 2

Datasheet Details

Part number
1N5624
Manufacturer
NTE
File Size
47.45 KB
Datasheet
1N5624-NTE.pdf
Description
Glass Passivated Junction Rectifier
