1N5626, 1N5624 Glass Passivated Junction Rectifier

1N5626 Description

1N5624 thru 1N5627 Glass Passivated Junction Rectifier 3 Amp .

1N5626 Features

* D Glass Passivated Cavity
* Free Junction D High Temperature Metallurgically Bonded Construction D Hermetically Sealed Package D Typical IR Less Than 0.1μA D 3 Amp Operation at TA = +70°C with No Thermal Runaway D High Temperature Soldering Guaranteed Maximum Ratings and Electrical Character

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: 1N5626, 1N5624. Please refer to the document for exact specifications by model.

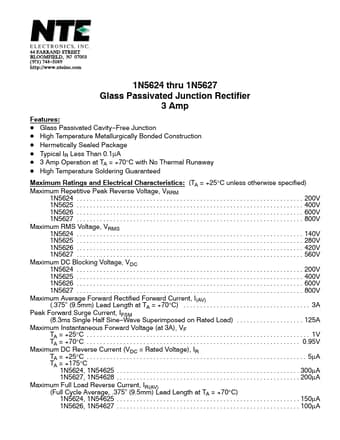

datasheet Preview Page 2

Datasheet Details

Part number
1N5626, 1N5624
Manufacturer
NTE
File Size
47.45 KB
Datasheet
1N5624-NTE.pdf
Description
Glass Passivated Junction Rectifier
Note
This datasheet PDF includes multiple part numbers: 1N5626, 1N5624.
Please refer to the document for exact specifications by model.
