D44C11 Datasheet PDF (Silicon NPN Transistor)

D44C11 - Silicon NPN Transistor

Datasheet Summary

Description

The D44C11 silicon NPN transistors in a TO 220 type package designed for various specific and general purpose amplifications such as output and driver stages of amplifiers operating at frequencies from DC to greater than 1.0MHz, series, shunt and switching regulators, low and high frequency

Features

D Very Low Collector.
Emitter Saturation Voltage D excellent Linearity D Fast Switching Absolute Maximum Ratings: Collector.
Emitter Voltage, VCEO.
. . . . 80V Collector.
Emitter Voltage, VCES.
. . . . 90V Emitter.
Base Voltage, VEBO.

Datasheet Details

Part number	D44C11
Manufacturer	NTE
File Size	61.64 KB
Description	Silicon NPN Transistor
Datasheet	D44C11 Datasheet

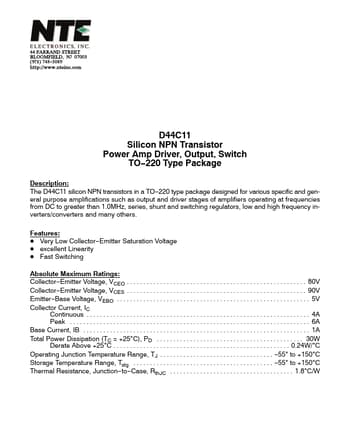

Additional preview pages of the D44C11 datasheet.

📁 Similar Datasheet

D44C11 - Silicon NPN Power Transistor (Inchange Semiconductor)

D44C11 - SILICON NPN POWER TRANSISTORS (Central Semiconductor)

D44C11 - Silicon NPN Power Transistors (Savantic)

D44C1 - SILICON NPN POWER TRANSISTORS (Central Semiconductor)

D44C1 - Silicon NPN Power Transistor (Inchange Semiconductor)

D44C1 - Silicon NPN Power Transistors (Savantic)

D44C10 - SILICON NPN POWER TRANSISTORS (Central Semiconductor)

D44C10 - Silicon NPN Power Transistor (Inchange Semiconductor)

D44C10 - Silicon NPN Power Transistors (Savantic)

D44C12 - Complementary Silicon Power Transistor (ON Semiconductor)

Full PDF Text Transcription

Click to expand full text

D44C11 Silicon NPN Transistor Power Amp Driver, Output, Switch TO−220 Type Package Description: The D44C11 silicon NPN transistors in a TO−220 type package designed for various specific and general purpose amplifications such as output and driver stages of amplifiers operating at frequencies from DC to greater than 1.0MHz, series, shunt and switching regulators, low and high frequency inverters/converters and many others. Features: D Very Low Collector−Emitter Saturation Voltage D excellent Linearity D Fast Switching Absolute Maximum Ratings: Collector−Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 80V Collector−Emitter Voltage, VCES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
