NTE1377 Integrated Circuit AF Power Amplifier

NTE1377 Description

NTE1377 Integrated Circuit AF Power Amplifier, 6W/Channel .

NTE1377 Features

* D Built

NTE1377 Applications

* Dual: 6W x 2 Typ Bridge: 19W Typ D Minimum Number of External Parts Required D Low Pop Noise during Power Supply ON/OFF and Good Starting Balance D Good Ripple Rejection: 46dB Typ D Good Channel Separation D Low Residual Noise (Rg = 0) D Low Distortion over a Wide Range of Low to High Frequencies D

📥 Download Datasheet

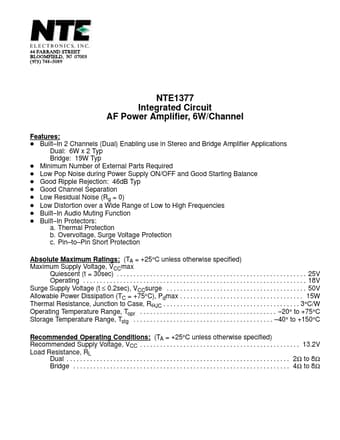

Preview of NTE1377 PDF
datasheet Preview Page 2

Datasheet Details

Part number
NTE1377
Manufacturer
NTE
File Size
23.05 KB
Datasheet
NTE1377_NTEElectronics.pdf
Description
Integrated Circuit AF Power Amplifier
