NTE1026 - Integrated Circuit Module

📥 Download Datasheet

Datasheet preview – NTE1026

Datasheet Details

Part number NTE1026
Manufacturer NTE Electronics
File Size 102.31 KB
Description Integrated Circuit Module
Datasheet download datasheet NTE1026 Datasheet
Additional preview pages of the NTE1026 datasheet.

📁 Similar Datasheet

  • NTE102 - Germanium Complementary Transistors (NTE)
  • NTE1022 - Integrated Circuit 4-Channel Stereo Decoder (NTE)
  • NTE1024 - Audio Power Amplifier (NTE)
  • NTE1027 - Audio Power Amplifier (NTE)
  • NTE1028 - Audio Power Amp 20W (NTE)
  • NTE102A - Germanium Complementary Transistors (NTE)
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier (NTE)
  • NTE100 - Germanium Complementary Transistors Oscillator (NTE)
  • NTE1002 - Integrated Circuit FM IF TV Amp (NTE)
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier (NTE)
Other Datasheets by NTE Electronics
  • NTE1012 - Integrated Circuit Module - Hybrid
  • NTE1039 - Integrated Circuit FM IF Amplifier
  • NTE1052 - Integrated Circuit Low Noise Preamp
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator
  • NTE1057 - Integrated Circuit FM IF Amplifier
  • NTE1058 - Integrated Circuit Audio Power Amp
  • NTE1096 - High Frequency Wide-Band Amplifier/Phase Detector

Full PDF Text Transcription

Click to expand full text

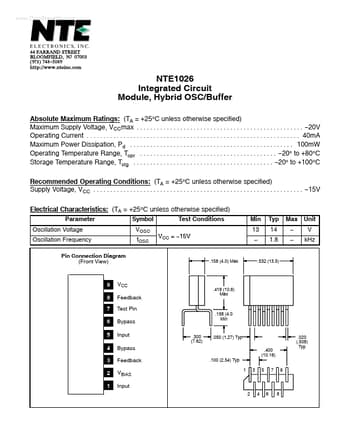

www.DataSheet4U.com NTE1026 Integrated Circuit Module, Hybrid OSC/Buffer Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage, VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20V Operating Current . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA Maximum Power Dissipation, Pd . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100mW Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . −20° to +80°C Storage Temperature Range, Tstg . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
