NTE100 - Germanium Complementary Transistors Oscillator

📥 Download Datasheet

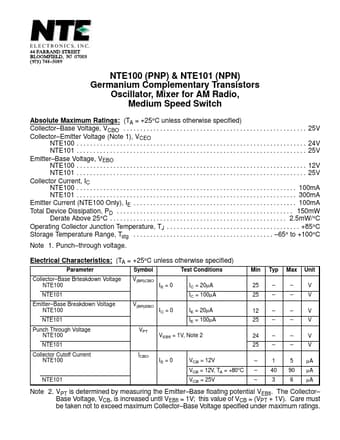

Datasheet preview – NTE100

Datasheet Details

Part number NTE100
Manufacturer NTE
File Size 26.00 KB
Description Germanium Complementary Transistors Oscillator
Datasheet download datasheet NTE100 Datasheet
Additional preview pages of the NTE100 datasheet.

📁 Similar Datasheet

  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
  • NTE1026 - Integrated Circuit Module (NTE Electronics)
  • NTE1039 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1052 - Integrated Circuit Low Noise Preamp (NTE Electronics)
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier (NTE Electronics)
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator (NTE Electronics)
  • NTE1057 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1058 - Integrated Circuit Audio Power Amp (NTE Electronics)
  • NTE1096 - High Frequency Wide-Band Amplifier/Phase Detector (NTE Electronics)
  • NTE1205MC - DC/DC Converters (Murata)
Other Datasheets by NTE
  • NTE1002 - Integrated Circuit FM IF TV Amp
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier
  • NTE1005 - Integrated Circuit FM Stereo Demodulator
  • NTE1006 - Integrated Circuit FM Multiplex Stereo Demodulator
  • NTE1009 - Integrated Circuit AF Power Amplifier
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier
  • NTE101 - Germanium Complementary Transistors
  • NTE1014 - RF Amp/OSC

Full PDF Text Transcription

Click to expand full text
NTE100 (PNP) & NTE101 (NPN) Germanium Complementary Transistors Oscillator, Mixer for AM Radio, Medium Speed Switch Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V Collector–Emitter Voltage (Note 1), VCEO NTE100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 24V NTE101 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25V Emitter–Base Voltage, VEBO NTE100 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
