NTE1005 - Integrated Circuit FM Stereo Demodulator

Datasheet Summary

Features

  • D 19kHz and 38kHz Coils D SCA Rejection Ratio: 50dB D No Special Adjusting Needed for SCA Rejecting D Also Seperation Controller Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage (V1.
  • 7, V6.
  • 7), VCCmax.
  • 20V Lamp Driving Current, IL.
  • . . . 40mA Allowable Power Dissipation, PDma.

📥 Download Datasheet

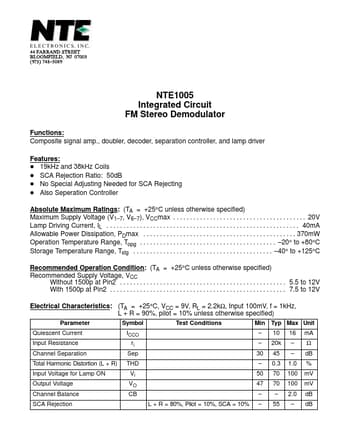

Datasheet preview – NTE1005

Datasheet Details

Part number NTE1005
Manufacturer NTE
File Size 18.78 KB
Description Integrated Circuit FM Stereo Demodulator
Datasheet download datasheet NTE1005 Datasheet
Additional preview pages of the NTE1005 datasheet.

📁 Similar Datasheet

  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
  • NTE1026 - Integrated Circuit Module (NTE Electronics)
  • NTE1039 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1052 - Integrated Circuit Low Noise Preamp (NTE Electronics)
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier (NTE Electronics)
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator (NTE Electronics)
  • NTE1057 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1058 - Integrated Circuit Audio Power Amp (NTE Electronics)
  • NTE1096 - High Frequency Wide-Band Amplifier/Phase Detector (NTE Electronics)
  • NTE1205MC - DC/DC Converters (Murata)
Other Datasheets by NTE
  • NTE100 - Germanium Complementary Transistors Oscillator
  • NTE1002 - Integrated Circuit FM IF TV Amp
  • NTE1003 - Integrated Circuit FM/AM IF Amplifier
  • NTE1006 - Integrated Circuit FM Multiplex Stereo Demodulator
  • NTE1009 - Integrated Circuit AF Power Amplifier
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier
  • NTE101 - Germanium Complementary Transistors
  • NTE1014 - RF Amp/OSC

Full PDF Text Transcription

Click to expand full text
NTE1005 Integrated Circuit FM Stereo Demodulator Functions: Composite signal amp., doubler, decoder, separation controller, and lamp driver Features: D 19kHz and 38kHz Coils D SCA Rejection Ratio: 50dB D No Special Adjusting Needed for SCA Rejecting D Also Seperation Controller Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Maximum Supply Voltage (V1–7, V6–7), VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 20V Lamp Driving Current, IL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40mA Allowable Power Dissipation, PDmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 370mW Operation Temperature Range, Topg . . . . . . .
