NTE1003 - Integrated Circuit FM/AM IF Amplifier

Datasheet Summary

Description

The NTE1003 monolithic integrated circuit is a high grade FM/AM intermediate frequency amplifier in a 14

Lead DIP type package composed of four individual amplifiers and a voltage regulator.

Features

  • D Composed of Four Individual Amplifiers D Low Power Consumption D High Gain D Superior AGC Characteristics Absolute Maximum Ratings: (TA = +25°C unles otherwise specified) Maximum Supply Voltage (Pin14), VCCmax.
  • . . . . 10V Maximum Supply Voltage (Pin8, Pin13), V8, V13.
  • 10V Operating Temperature Range, Topr.

📥 Download Datasheet

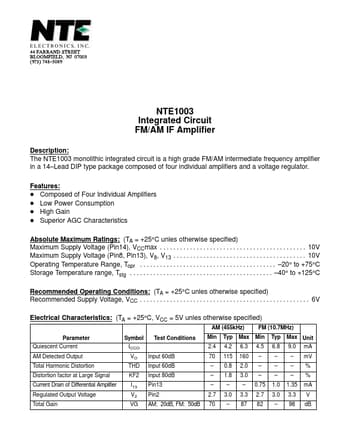

Datasheet preview – NTE1003

Datasheet Details

Part number NTE1003
Manufacturer NTE
File Size 19.23 KB
Description Integrated Circuit FM/AM IF Amplifier
Datasheet download datasheet NTE1003 Datasheet
Additional preview pages of the NTE1003 datasheet.

📁 Similar Datasheet

  • NTE1012 - Integrated Circuit Module - Hybrid (NTE Electronics)
  • NTE1026 - Integrated Circuit Module (NTE Electronics)
  • NTE1039 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1052 - Integrated Circuit Low Noise Preamp (NTE Electronics)
  • NTE1053 - Integrated Circuit AF High Gain Preamplifier (NTE Electronics)
  • NTE1056 - Integrated Circuit FM Stereo Multiplex Demodulator (NTE Electronics)
  • NTE1057 - Integrated Circuit FM IF Amplifier (NTE Electronics)
  • NTE1058 - Integrated Circuit Audio Power Amp (NTE Electronics)
  • NTE1096 - High Frequency Wide-Band Amplifier/Phase Detector (NTE Electronics)
  • NTE1205MC - DC/DC Converters (Murata)
Other Datasheets by NTE
  • NTE100 - Germanium Complementary Transistors Oscillator
  • NTE1002 - Integrated Circuit FM IF TV Amp
  • NTE1005 - Integrated Circuit FM Stereo Demodulator
  • NTE1006 - Integrated Circuit FM Multiplex Stereo Demodulator
  • NTE1009 - Integrated Circuit AF Power Amplifier
  • NTE10 - Silicon NPN Transistor UHF Low Noise Wide.Band Amplifier
  • NTE101 - Germanium Complementary Transistors
  • NTE1014 - RF Amp/OSC

Full PDF Text Transcription

Click to expand full text
NTE1003 Integrated Circuit FM/AM IF Amplifier Description: The NTE1003 monolithic integrated circuit is a high grade FM/AM intermediate frequency amplifier in a 14–Lead DIP type package composed of four individual amplifiers and a voltage regulator. Features: D Composed of Four Individual Amplifiers D Low Power Consumption D High Gain D Superior AGC Characteristics Absolute Maximum Ratings: (TA = +25°C unles otherwise specified) Maximum Supply Voltage (Pin14), VCCmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V Maximum Supply Voltage (Pin8, Pin13), V8, V13 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 10V Operating Temperature Range, Topr . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
