NTE1503 - Integrated Circuit 5-Step LED Driver

NTE

The NTE1503 by NTE is a Integrated Circuit 5-Step LED Driver. Below is the official datasheet preview.

📥 Download Datasheet

NTE1503 Integrated Circuit 5-Step LED Driver by NTE - Datasheet Preview — Official preview page of the **NTE1503** Integrated Circuit 5-Step LED Driver datasheet (NTE).

Datasheet Details

Part number	NTE1503
Manufacturer	NTE
File Size	20.81 KB
Description	Integrated Circuit 5-Step LED Driver
Datasheet	NTE1503_NTEElectronics.pdf

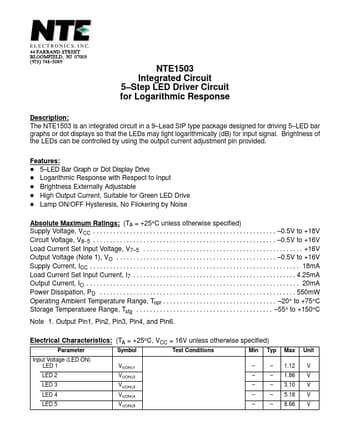

Additional preview pages of the NTE1503 datasheet.

NTE1503 Product details

Description

The NTE1503 is an integrated circuit in a 9 Lead SIP type package designed for driving 5 LED bar graphs or dot displays so that the LEDs may light logarithmically (dB) for input signal.

Features

D 5.
LED Bar Graph or Dot Display Drive D Logarithmic Response with Respect to Input D Brightness Externally Adjustable D High Output Current, Suitable for Green LED Drive D Lamp ON/OFF Hysteresis, No Flickering by Noise Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
0.5V to +18V Circuit Voltage, V8.
5.
