NTE1606 Datasheet, Amplifier, NTE

NTE1606 Features

  • Amplifier D Low Quiescent Current for Efficient Battery Operation D Audio Muting Circuit Included D Designed for Low Crossover Distortion Under a Low Idling Current D No Electrical Isolation Nee

PDF File Details

Part number:

NTE1606

Manufacturer:

NTE

File Size:

22.94kb

Download:

📄 Datasheet

Description:

Integrated circuit dual audio power amplifier. The NTE1606 is an audio power amplifier integrated circuit in a 12  –Lead SIP type package specifically designed for c

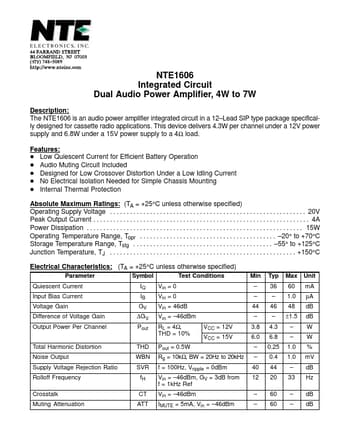

Datasheet Preview: NTE1606 📥 Download PDF (22.94kb)
Page 2 of NTE1606

NTE1606 Application

  • Applications This device delivers 4.3W per channel under a 12V power supply and 6.8W under a 15V power supply to a 4Ω load. Features: D Low Quiesce
