NTE1620 - Integrated Circuit B/W TV Video IF Amplifier

NTE

Datasheet Details

Part number	NTE1620
Manufacturer	NTE
File Size	19.30 KB
Description	Integrated Circuit B/W TV Video IF Amplifier
Datasheet	NTE1620_NTEElectronics.pdf

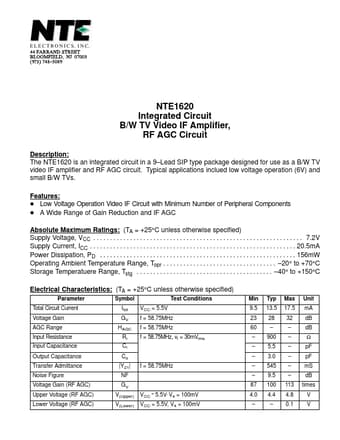

The NTE1620 is an integrated circuit in a 9 Lead SIP type package designed for use as a B/W TV video IF amplifier and RF AGC circuit.

D Low Voltage Operation Video IF Circuit with Minimum Number of Peripheral Components D A Wide Range of Gain Reduction and IF AGC Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Supply Voltage, VCC.
. . . 7.2V Supply Current, ICC.
. . 20.5mA Power Dissipation, PD.
