NTE1836

Integrated Circuit Electronic Channel Select System Controller

NTE1836 Features

* D The Band Switch Truth Table can be changed in a short period of time at the user’s option. D The Band Switch is of PNP output type which need not be driven externally. D The OP Amp for Low

* Pass Filter is excellant in pulse response because of it’s High

* Impedance Input Pin. Absolut

NTE1836 General Description

The NTE1836 contains CPU/PLL

*excluded peripheral circuits such as band switch, +5V power supply (with RST), sync detector, low

*pass filter for color TV/VCR frequency synthesizer channel select system use. Functions: D Band Switch (2

*Input, 4

*Output) D Video Signal, F.

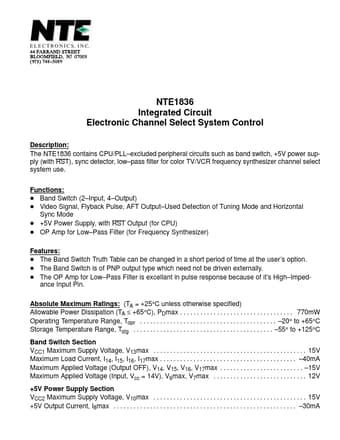

NTE1836 Datasheet (29.77 KB)

Preview of NTE1836 PDF

Datasheet Details

Part number:

NTE1836

Manufacturer:

NTE

File Size:

29.77 KB

Description:

Integrated circuit electronic channel select system controller.
