NTE1915

Integrated Circuit Negative 3 Terminal Voltage Regulator

NTE1915 Features

* D Preset Output Voltage Error Less Than ±3% D Preset Current Limit D Internal Thermal Shutdown D Operates with Input

* Output Voltage Differential Down to 1V D Excellent Ripple Rejection D Low Temperature Drift D Easily Adjustable to Higher Output Voltage Absolute Maximum Ratings: Input Volta

NTE1915 General Description

The NTE1915 is a 3 terminal negative regulator in a TO3 type package with a fixed output voltage of

*12V and up to 1.5A load current capability. Where other voltages are required, the NTE1911 provides an output voltage range of

*1.2V to

*37V. This device needs only one exter.

NTE1915 Datasheet (24.22 KB)

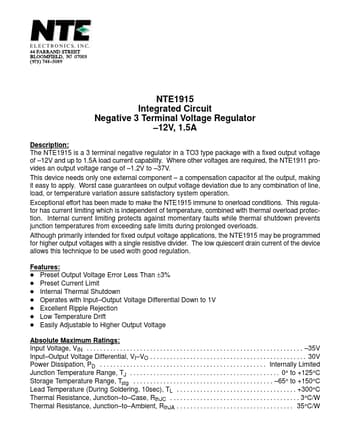

Preview of NTE1915 PDF

Datasheet Details

Part number:

NTE1915

Manufacturer:

NTE

File Size:

24.22 KB

Description:

Integrated circuit negative 3 terminal voltage regulator.
