NTE1961 Datasheet - NTE

NTE1961 Integrated Circuit Negative / 3-Terminal Voltage Regulator

The NTE1961 through NTE1977 series of monolithic 3 *terminal negative voltage regulators employ internal current limiting, thermal shut *down, and safe *area compensation in an isolated TO220 type package making them essentially indestrucible. If adequate heat sinking is provid.

NTE1961_NTEElectronics.pdf

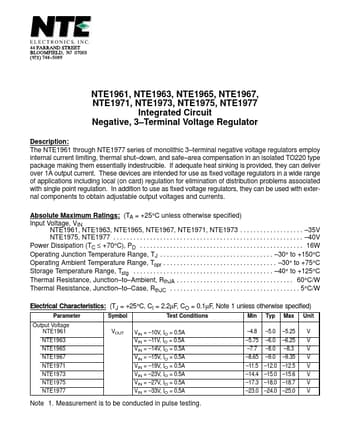

Preview of NTE1961 PDF
NTE1961 Datasheet Preview Page 2 NTE1961 Datasheet Preview Page 3

Datasheet Details

Part number:

NTE1961

Manufacturer:

NTE

File Size:

29.83 KB

Description:

Integrated circuit negative / 3-terminal voltage regulator.
