NTE2062 - Integrated Circuit PMOS Digital Alarm Clock

Description

50Hz/60Hz Input: The On

Chip Schmitt Trigger circuit allows a simple RC filter at the input to remove possible line voltage transients.

up resistor is provided.

down occurs, the time counter enters the “hold” mode and the on

Features

  • D Single.
  • Chip ED MOS LSI D LED Direct Drive by Time.
  • Sharing (Duplex) D Wide Operating Voltage Range D Alarm on a 24.
  • Hour Basis D Two Selections of Time Format: AM/PM 12.
  • Hour Basis & 24.
  • Hour Basis D On.
  • Chip CR Oscillator for Battery Backup D 50Hz or 60Hz Reference Frequency Functions: D Real Time Display D Alarm with Snooze D Sleep Timer D Automatic Advance Capable: “Hours”, “Minutes” D Sleep Timer: Max. 59 Minutes or 1Hour, 59 Minutes D Repeatedly.

📥 Download Datasheet

Datasheet preview – NTE2062

Datasheet Details

Part number NTE2062
Manufacturer NTE
File Size 35.18 KB
Description Integrated Circuit PMOS Digital Alarm Clock
Datasheet download datasheet NTE2062 Datasheet
Additional preview pages of the NTE2062 datasheet.

📁 Similar Datasheet

  • NTE2000 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2001 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2003 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2004 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE214 - (NTE74xx) Transistor Logic (NTE Electronics)
  • NTE2393 - N-Channel MOSFET (INCHANGE)
  • NTE2661 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2662 - Silicon NPN Transistor High Frequency (NTE Electronics)
  • NTE2665 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2668 - Silicon NPN Transistor High Current Switching (NTE Electronics)
Other Datasheets by NTE
  • NTE2060 - Integrated Circuit PMOS LSI Alarm Clock
  • NTE2061 - Integrated Circuit PMOS LSI Alarm Clock
  • NTE20 - Silicon Complementary Transistors High Power / Low Collector Saturation Voltage Power Output
  • NTE2003 - Integrated Circuit Dolby B-Type Noise Reduction Processor
  • NTE2004 - Integrated Circuit Dolby Noise Reduction Circuit
  • NTE2011 - Integrated Circuit 7-Channel Darlington Array/Driver
  • NTE2012 - Integrated Circuit 7-Channel Darlington Array/Driver
  • NTE2013 - Integrated Circuit 7-Channel Darlington Array/Driver

Full PDF Text Transcription

Click to expand full text

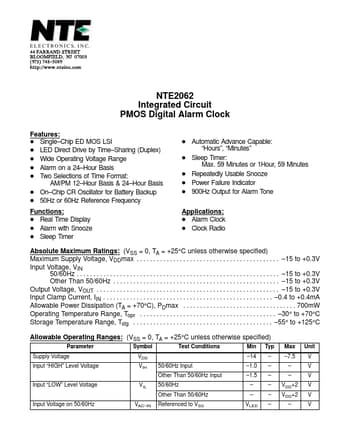

NTE2062 Integrated Circuit PMOS Digital Alarm Clock Features: D Single–Chip ED MOS LSI D LED Direct Drive by Time–Sharing (Duplex) D Wide Operating Voltage Range D Alarm on a 24–Hour Basis D Two Selections of Time Format: AM/PM 12–Hour Basis & 24–Hour Basis D On–Chip CR Oscillator for Battery Backup D 50Hz or 60Hz Reference Frequency Functions: D Real Time Display D Alarm with Snooze D Sleep Timer D Automatic Advance Capable: “Hours”, “Minutes” D Sleep Timer: Max. 59 Minutes or 1Hour, 59 Minutes D Repeatedly Usable Snooze D Power Failure Indicator D 900Hz Output for Alarm Tone Applications: D Alarm Clock D Clock Radio Absolute Maximum Ratings: (VSS = 0, TA = +25°C unless otherwise specified) Maximum Supply Voltage, VDDmax . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Published: |
