NTE282 - Silicon NPN Transistor Final RF Power Amp / Switch

📥 Download Datasheet

Datasheet preview – NTE282

Datasheet Details

Part number NTE282
Manufacturer NTE
File Size 22.57 KB
Description Silicon NPN Transistor Final RF Power Amp / Switch
Datasheet download datasheet NTE282 Datasheet
Additional preview pages of the NTE282 datasheet.

📁 Similar Datasheet

  • NTE288 - (NTE287 / NTE288) Silicon Complementary Transistors High Voltage / General Purpose Amplifier (NTE Electronics)
  • NTE2000 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2001 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2003 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE2004 - (NTExxxx) Linear Integrated Circuits (NTE Electronics)
  • NTE214 - (NTE74xx) Transistor Logic (NTE Electronics)
  • NTE2393 - N-Channel MOSFET (INCHANGE)
  • NTE2661 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
  • NTE2662 - Silicon NPN Transistor High Frequency (NTE Electronics)
  • NTE2665 - Silicon NPN Transistor Horizontal Deflection Output (NTE Electronics)
Other Datasheets by NTE
  • NTE28 - Germanium PNP Transistor
  • NTE280 - Silicon Complementary Trasistors Audio Power Amplifier
  • NTE281 - Silicon Complementary Transistors
  • NTE283 - Silicon NPN Transistor Horizontal Output / Switch
  • NTE284 - Silicon Complementary Transistors Audio Amplifier Output
  • NTE285 - Silicon Complementary Transistors
  • NTE287 - Silicon Complementary Transistors High Voltage / General Purpose Amplifier
  • NTE289 - Silicon Complementary Transistors Audio Power Amplifier / Switch

Full PDF Text Transcription

Click to expand full text

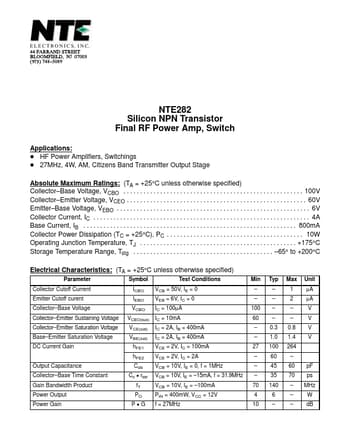

NTE282 Silicon NPN Transistor Final RF Power Amp, Switch Applications: D HF Power Amplifiers, Switchings D 27MHz, 4W, AM, Citizens Band Transmitter Output Stage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector–Base Voltage, VCBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 100V Collector–Emitter Voltage, VCEO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 60V Emitter–Base Voltage, VEBO . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 6V Collector Current, IC . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
