NTE283 - Silicon NPN Transistor Horizontal Output / Switch

Description

The NTE283 is a silicon NPN transistor in a TO3 type package designed for high voltage, high

speed, power switching in inductive circuits where fall time is critical.

Typical applications include switching regulators, PWM inverters, solenoid and relay drivers.

📥 Download Datasheet

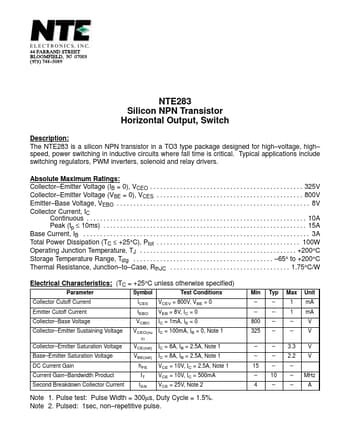

Datasheet preview – NTE283

Datasheet Details

Part number NTE283
Manufacturer NTE
File Size 22.89 KB
Description Silicon NPN Transistor Horizontal Output / Switch
Datasheet download datasheet NTE283 Datasheet
Additional preview pages of the NTE283 datasheet.
