NTE289A - Silicon Complementary Transistors Audio Power Amplifier

This page provides the datasheet information for the NTE289A, a member of the NTE Silicon Complementary Transistors Audio Power Amplifier family.

Features

  • D High Breakdown Voltage: V(BR)CEO = 80V Min D High Current: IC = 500mA D Low Saturation Voltage Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Collector.
  • Base Voltage, VCBO.
  • . . . . 100V Collector.
  • Emitter Voltage, VCEO.
  • . . . . 80V Emitter.
  • Base Voltage, VEBO.

📥 Download Datasheet

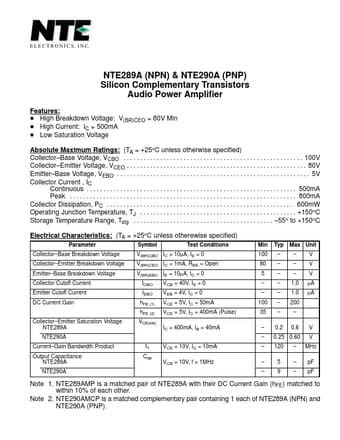

Datasheet preview – NTE289A

Datasheet Details

Part number NTE289A
Manufacturer NTE
File Size 14.13 KB
Description Silicon Complementary Transistors Audio Power Amplifier
Datasheet download datasheet NTE289A Datasheet
