NTE3079 - 0.56 Single Digit Numeric Display

NTE

The NTE3079 by NTE is a 0.56 Single Digit Numeric Display. Below is the official datasheet preview.

📥 Download Datasheet

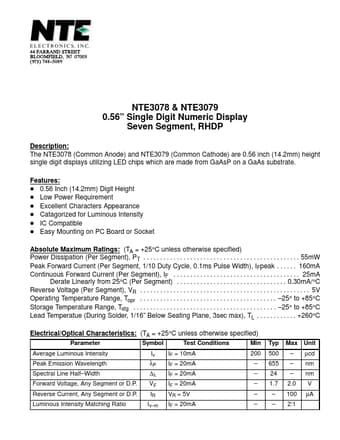

NTE3079 0.56 Single Digit Numeric Display by NTE - Datasheet Preview — Official preview page of the **NTE3079** 0.56 Single Digit Numeric Display datasheet (NTE).

Datasheet Details

Part number	NTE3079
Manufacturer	NTE
File Size	25.82 KB
Description	0.56 Single Digit Numeric Display
Datasheet	NTE3079_NTEElectronics.pdf
Additional preview pages of the NTE3079 datasheet.

NTE3079 Product details

Description

The NTE3078 (Common Anode) and NTE3079 (Common Cathode) are 0.56 inch (14.2mm) height single digit displays utilizing LED chips which are made from GaAsP on a GaAs substrate.

Features

D 0.56 Inch (14.2mm) Digit Height D Low Power Requirement D Excellent Characters Appearance D Catagorized for Luminous Intensity D IC Compatible D Easy Mounting on PC Board or Socket Absolute Maximum Ratings: (TA = +25°C unless otherwise specified) Power Dissipation (Per Segment), PT.
. . 55mW Peak Forward Current (Per Segment, 1/10 Duty Cycle, 0.1ms Pulse Width), IFpeak.
. 160mA Continuous Forward Current (.
